キング・クリムゾンのセットリストを分析する
動機
2021年最大の出来事といえばキング・クリムゾン（以下KC）の来日公演です。
2014年に現体制（公式の区分でいうところのKCVII）が結成されてから3回目の来日となりました。そして、これが最後の来日公演ともいわれています。
コロナ禍のために来日が危ぶまれていましたが、緊急事態宣言解除とオミクロン株による渡航制限発動の狭間で、奇跡の来日が実現しました。
本当に感謝しかありません。
私も東京の5公演に参加しましたが、本当に素晴らしいステージでした。
さて、現体制のKCの特徴として、公演ごとにころころと変わるセットリストがあります。
普通のミュージシャンであればツアー中に曲目や曲順を変えることはほとんどないと思いますが、KCは曲目も曲順も毎公演で変わります。
しかし、完全にランダムというわけではなく、ほぼ必ず演奏される曲があったり、この曲の後にはこの曲が演奏されやすい、といった
法則が見られます。
この点に注目されて2015年の来日公演時に id:nisshan_X さんがセットリストの分析をされていました。
nisshan-x.hatenablog.com
今回は現体制KCによる来日公演を含む以下の3回のツアーについて、同じようにR言語を用いて分析をしてみたいと思います。
- The Elements of King Crimson Tour （以下2015）
- Uncertain Times Tour （以下2018）
- Music Is Our Friend Tour （以下2021）
分析結果
楽曲の登場頻度

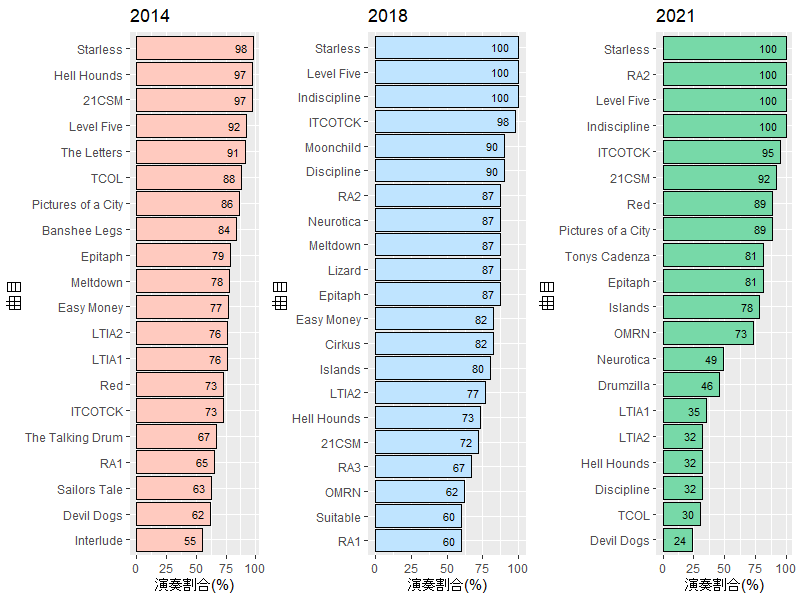

まずはツアー毎にどんな曲が多く演奏されているかを見てみます。
ただし、ツアー毎に公演回数が異なるので、公演回数に対する演奏割合で見てみます。
Starlessが不動の一位。まあ、そうですよね。Level Fiveもずっと上位にいます。
Indiscipleneが2018，2021と上位に入っているのも注目です。80年代の曲ですが、現行体制を代表する1曲です。最もいまのクリムゾンらしい曲といっていいでしょう。
どの曲とどの曲が同じ日に演奏されやすいか

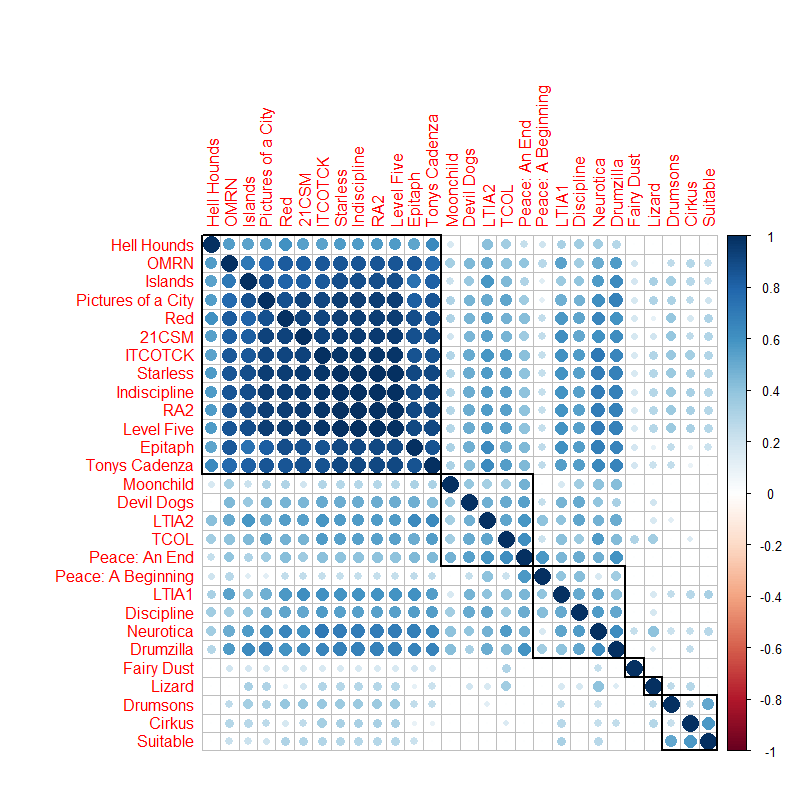

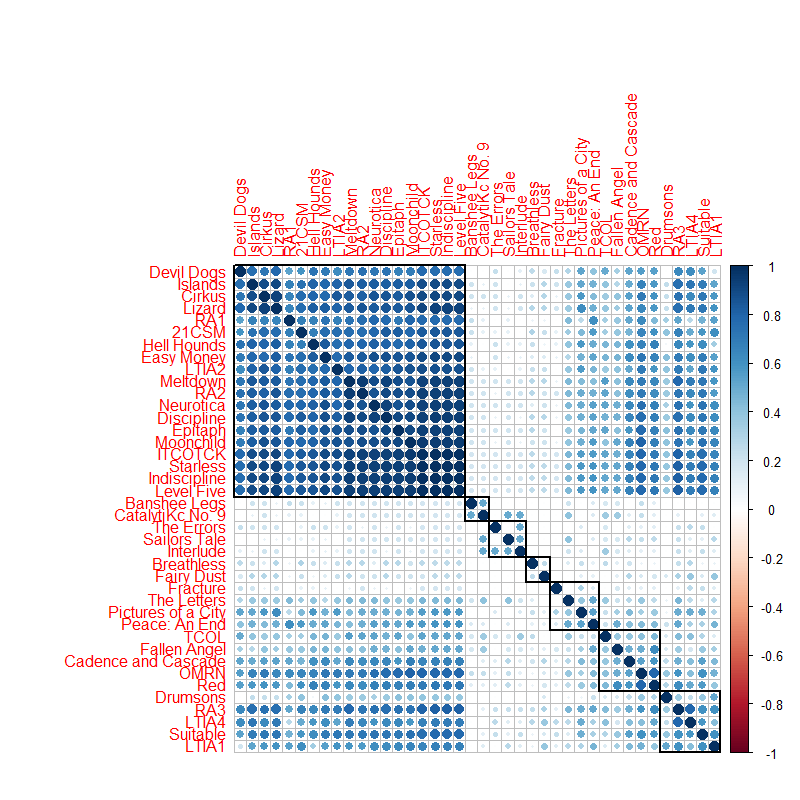

曲と曲の組み合わせで、色が濃く円が大きい組み合わせがよく一緒に演奏される曲です。
これを見ると、2014はばらつきが大きく本当にどの曲が演奏されるか分からなかったのが、2018、2021ではある程度ほぼ決まって演奏される楽曲群とそれ以外のレア曲に明確に分かれるようになったのが分かりますj。
曲順分析
最後に曲順の分析です。

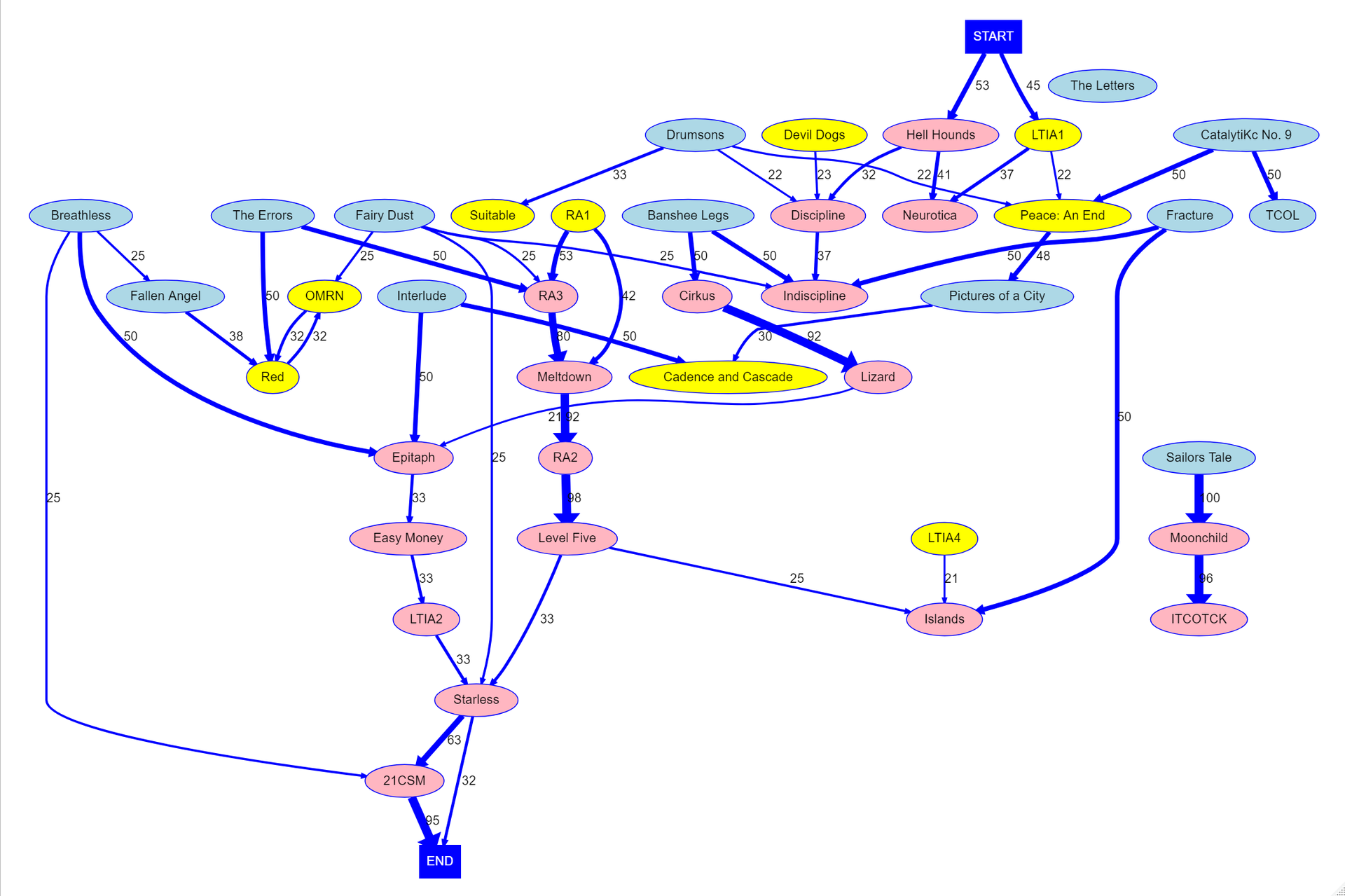

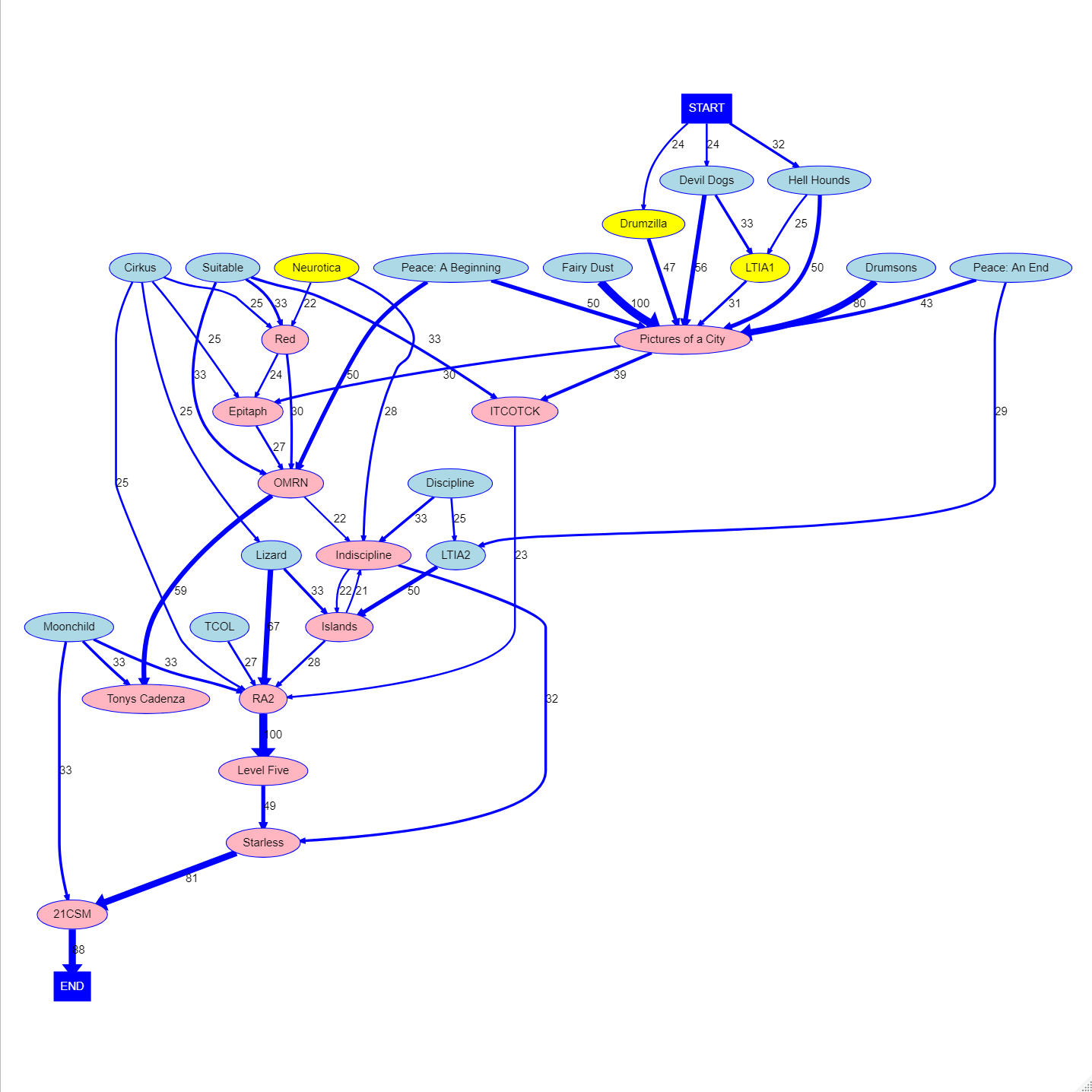

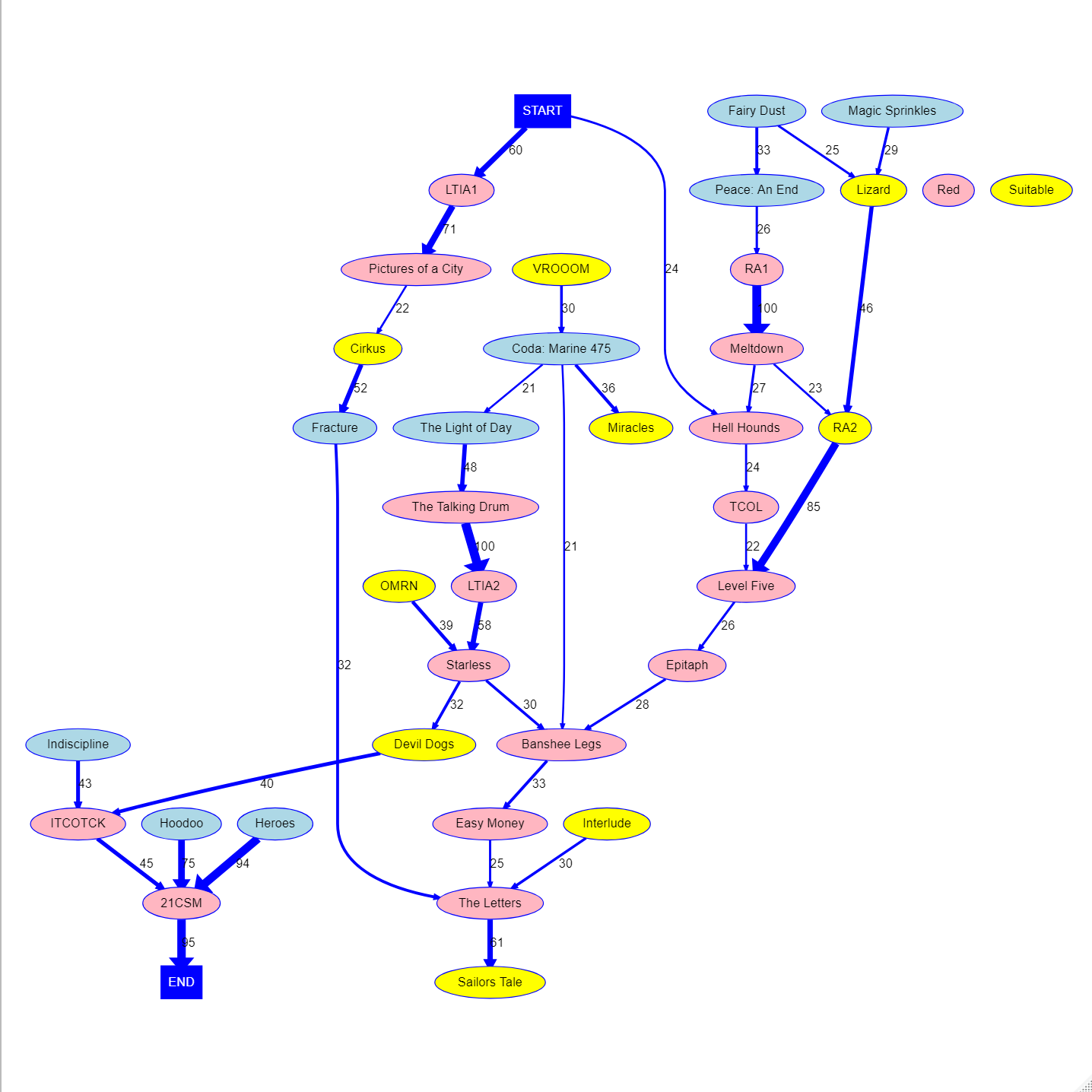

ある曲の次にある曲が演奏される割合を矢印の上にパーセントで書いています。
都合上、20%以下のつながりは割愛しています。
曲名の背景がピンクは定番曲（演奏割合66%以上）、青はレア曲（同33%以下）、黄色はその中間（33%～66%）です。
2021の Picture of a city （冷たい街の情景）がハブになっている感じが面白いですね。
2015
2018
2021
まとめ
最後の来日公演なんて言わないでまた来てよー。
80年代～00年代の曲ももっと聴きたいよー！
分析過程
以下、Ｒ言語のコードを含む分析の過程です。
データの取得
まずはセットリストのデータの取得です。
ありがたいことに setlist.fm に有志が投稿したセットリストが載っていますので、ここから分析のためのデータを取得したいと思います。
APIも用意されているようですが、うまく情報の取得ができなかったため、ここではウェブスクレイピングを行います。
# パッケージの読み込み library(tidyverse) # データ操作用 library(rvest) # ウェブスクレイピング library(polite) # お行儀よくウェブスクレイピングするため ### setlist.fmからセットリストを抽出する関数を定義。 setlist_fm_scraping <- function(search_list) { scrape_fun <- function(x) { scrape(bow(x, user_agent = "King Crimson Tour Setlist Analysis")) } html_list <- map(search_list, scrape_fun) link_vec <- unlist(map(html_list, ~ { html_attr(html_nodes(., css = "a[href *= 'setlist/king-crimson/']"), "href") })) extract_setlist <- function(x) { html_text(html_nodes(scrape(bow( paste0("https://www.setlist.fm/", x), user_agent = "King Crimson Tour Setlist Analysis" )), xpath = "//a[@class = 'songLabel']")) } setlists <- map(link_vec, extract_setlist) return(setlists) } ### 各ツアー毎の検索結果ページを設定 pages <- 1:4 search_list_2021 <- map_chr(pages, ~ { paste0( "https://www.setlist.fm/search?page=", ., "&query=tour:%28Music+Is+Our+Friend+2021") }) pages <- 1:6 search_list_2018 <- map_chr(pages, ~ { paste0( "https://www.setlist.fm/search?page=", ., "&query=king+crimson+Uncertain+Times+Tour") }) pages <- 1:11 search_list_2014 <- map_chr(pages, ~ { paste0( "https://www.setlist.fm/search?page=", ., "&query=tour:%28the+elements+of+king+crimson%29") }) ### 各ツアーのセットリストを抽出 # １ページ当たり5秒間隔なのでちょっと時間がかかります setlist_2021 <- setlist_fm_scraping(search_list_2021) setlist_2018 <- setlist_fm_scraping(search_list_2018) setlist_2014 <- setlist_fm_scraping(search_list_2014) ### スクレイピングを繰り返さないでいいようにオブジェクトを保存しておく。 save(setlist_2021, setlist_2018, setlist_2014, file = "kc_setlist.RData")
前処理
分析を進める前に、見やすさのために長い曲名を短縮形にします。
library(tidyverse) load("kc_setlist.RData") # 長い曲名を短縮形に置換する関数。 song_name_shorten <- function(setlists) { res <- setlists %>% map(~ {str_replace_all(., pattern = "Larks' Tongues in Aspic, Part One", replacement = "LTIA1")}) %>% map(~ {str_replace_all(., pattern = "Larks' Tongues in Aspic, Part Two", replacement = "LTIA2")}) %>% map(~ {str_replace_all(., pattern = "21st Century Schizoid Man", replacement = "21CSM")}) %>% map(~ {str_replace_all(., pattern = "Devil Dogs of Tessellation Row", replacement = "Devil Dogs")}) %>% map(~ {str_replace_all(., pattern = "Hell Hounds of Krim", replacement = "Hell Hounds")}) %>% map(~ {str_replace_all(., pattern = "Fairy Dust of the Drumsons", replacement = "Fairy Dust")}) %>% map(~ {str_replace_all(., pattern = "One More Red Nightmare", replacement = "OMRN")}) %>% map(~ {str_replace_all(., pattern = "Suitable Grounds for the Blues", replacement = "Suitable")}) %>% map(~ {str_replace_all(., pattern = "The ConstruKction of Light", replacement = "TCOL")}) %>% map(~ {str_replace_all(., pattern = "The Court of the Crimson King", replacement = "ITCOTCK")}) %>% map(~ {str_replace_all(., pattern = "Radical Action III", replacement = "RA3")}) %>% map(~ {str_replace_all(., pattern = "Radical Action II", replacement = "RA2")}) %>% map(~ {str_replace_all(., pattern = "Radical Action \\(To Unseat the Hold of Monkey Mind\\)", replacement = "RA1")}) %>% map(~ {str_replace_all(., pattern = "Tony's Cadenza", replacement = "Tonys Cadenza")}) %>% map(~ {str_replace_all(., pattern = "Larks' Tongues in Aspic \\(Part IV\\)", replacement = "LTIA4")}) %>% map(~ {str_replace_all(., pattern = "Banshee Legs Bell Hassle", replacement = "Banshee Legs")}) %>% map(~ {str_replace_all(., pattern = "A Scarcity of Miracles", replacement = "Miracles")}) %>% map(~ {str_replace_all(., pattern = "Sailor's Tale", replacement = "Sailors Tale")}) %>% map(~ {str_remove_all(., '"')}) return(res) } setlist_2021 <- song_name_shorten(setlist_2021) setlist_2018 <- song_name_shorten(setlist_2018) setlist_2014 <- song_name_shorten(setlist_2014)
これで準備万端です。
ツアー毎に多く演奏された曲Top20
集計して割り算して棒グラフに。
song_table <- function(setlist) { t1 <- bind_rows( as_tibble(table(unlist(setlist)), .name_repair = ~ c("song_name", "freq")), tibble(song_name = c("START", "END"), freq = length(setlist)) ) t1$per <- t1$freq / length(setlist) return(t1) } table_2021 <- song_table(setlist_2021) table_2018 <- song_table(setlist_2018) table_2014 <- song_table(setlist_2014) all_table <- bind_rows( list("2021" = table_2021, "2018" = table_2018, "2014" = table_2014), .id = "year") %>% pivot_wider(names_from = year, values_from = freq, values_fill = 0) %>% pivot_longer(names_to = "year", cols=matches("\\d{4}"), values_to = "freq") top20 <- all_table %>% filter(!song_name %in% c("START", "END")) %>% group_by(year) %>% arrange(desc(per)) %>% top_n(20) g2014 <- top20 %>% filter(year == 2014) %>% ggplot(aes(x = reorder(song_name, per), y = per)) + geom_bar(stat = "identity", position = "dodge", color="black", fill="red") + coord_flip() + labs(title="2014", x="曲目", y="演奏割合") g2018 <- top20 %>% filter(year == 2018) %>% ggplot(aes(x = reorder(song_name, per), y = per)) + geom_bar(stat = "identity", position = "dodge", color="black", fill="green") + coord_flip() + labs(title="2018", x="曲目", y="演奏割合") g2021 <- top20 %>% filter(year == 2021) %>% ggplot(aes(x = reorder(song_name, per), y = per)) + geom_bar(stat = "identity", position = "dodge", color="black", fill="blue") + coord_flip() + labs(title="2021", x="曲目", y="演奏割合") library(gridExtra) grid.arrange(g2014, g2018, g2021, nrow = 1)
楽曲の共起分析
どの曲とどの曲が同じ日に演奏されやすいか。
ここではコサイン類似度で一緒に演奏されやすさを見ている。
exaxt_cor <- function(setlist) { ref <- unique(reduce(setlist, c)) res <- as.matrix(map_dfr(setlist, ~{setNames(as.integer(ref %in% .), ref)})) return(res) } cor_2014 <- exaxt_cor(setlist_2014) cor_2018 <- exaxt_cor(setlist_2018) cor_2021 <- exaxt_cor(setlist_2021) # コサイン類似度マトリクスで library(lsa) cm2014 <- cosine(cor_2014) cm2018 <- cosine(cor_2018) cm2021 <- cosine(cor_2021) library(corrplot) corrplot(cm2014, order="hclust", hclust.method="ward.D", addrect = 6) corrplot(cm2018, order="hclust", hclust.method="ward.D", addrect = 7) corrplot(cm2021, order="hclust", hclust.method="ward.D", addrect = 6)
曲順分析
ここはコードがだいぶ汚い……
セットリストからグラフのノードとエッジを設定しDOT言語のコードを吐き出す。
# セットリストのグラフ化 vec2graph <- function(x) { LEN <- length(x) data.frame( from = c("START", x), to = c(x, "END") ) } # どのツアーか設定する setlists <- setlist_2014 tb <- table_2014 # setlists <- setlist_2018 # tb <- table_2018 # setlists <- setlist_2021 # tb <- table_2021 setlist_df <- setlists %>% map_dfr(vec2graph) %>% group_by(from, to) %>% summarise(n = n()) %>% mutate(m = sum(n)) %>% ungroup() %>% mutate(per = round(n / m * 100, 0)) %>% select(from, to, per) library(DiagrammeR) nodes_df <- create_node_df( n = nrow(tb), type = "song", label = tb$song_name, shape = "ellipse", value = tb$per ) for_edges_df <- setlist_df %>% left_join(nodes_df, by = c("from" = "label")) %>% left_join(nodes_df, by = c("to" = "label")) %>% select(id.x, id.y, per) edges_df <- create_edge_df( from = for_edges_df$id.x, to = for_edges_df$id.y, rel = "a", width = for_edges_df$per ) %>% filter(width > 20) #ここでエッジの足切り graph <- create_graph( nodes_df = nodes_df, edges_df = edges_df ) %>% set_edge_attrs( edge_attr = color, values = "blue" ) %>% set_edge_attrs( edge_attr = label, values = edges_df$width ) %>% set_edge_attrs( edge_attr = penwidth, values = edges_df$width / 10 ) %>% set_edge_attrs( edge_attr = fontsize, values = 14) %>% set_node_attrs( node_attr = color, values = "blue" ) %>% set_node_attrs( node_attr = fillcolor, values = case_when( nodes_df$value > 66 ~ "lightpink", nodes_df$value > 33 ~ "yellow", nodes_df$value > 0 ~ "lightblue", TRUE ~ "black" ) ) %>% set_node_attrs( node_attr = fontcolor, values = "black") %>% set_node_attrs( node_attr = fontsize, values = 14) %>% set_node_attrs( node_attr = fixedsize, values = "false") graph %>% render_graph() graph %>% generate_dot() %>% cat()
ツアー毎にDOT言語で微調整し描画する。
2015
#2014 grViz( diagram = " digraph { graph [rankdir = TB, outputorder = 'edgesfirst', bgcolor = 'white'] node [fontname = 'Helvetica', fontsize = '10', shape = 'circle', fixedsize = 'true', width = '0.5', style = 'filled', fillcolor = 'aliceblue', color = 'gray70', fontcolor = 'gray50'] edge [fontname = 'Helvetica', fontsize = '8', len = '1.5', color = 'gray80', arrowsize = '0.5'] '1' [label = '21CSM', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '2' [label = 'Banshee Legs', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '3' [label = 'Cirkus', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '4' [label = 'Coda: Marine 475', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '5' [label = 'Devil Dogs', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '6' [label = 'Easy Money', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '7' [label = 'Epitaph', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '8' [label = 'Fairy Dust', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '9' [label = 'Fracture', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '10' [label = 'Hell Hounds', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '11' [label = 'Heroes', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '12' [label = 'Hoodoo', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '13' [label = 'Indiscipline', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '14' [label = 'Interlude', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '15' [label = 'ITCOTCK', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '16' [label = 'Level Five', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '17' [label = 'Lizard', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '18' [label = 'LTIA1', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '19' [label = 'LTIA2', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '20' [label = 'Magic Sprinkles', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '21' [label = 'Meltdown', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '22' [label = 'Miracles', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '23' [label = 'OMRN', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '24' [label = 'Peace: An End', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '25' [label = 'Pictures of a City', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '26' [label = 'RA1', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '27' [label = 'RA2', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '28' [label = 'Red', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '29' [label = 'Sailors Tale', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '30' [label = 'Starless', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '31' [label = 'Suitable', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '32' [label = 'TCOL', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '33' [label = 'The Letters', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '34' [label = 'The Light of Day', shape = 'ellipse', color = 'blue', fillcolor = 'lightblue', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '35' [label = 'The Talking Drum', shape = 'ellipse', color = 'blue', fillcolor = 'lightpink', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '36' [label = 'VROOOM', shape = 'ellipse', color = 'blue', fillcolor = 'yellow', fontcolor = 'black', fontsize = '14', fixedsize = 'false'] '37' [label = 'START', shape = 'box', color = 'blue', fillcolor = 'blue', fontcolor = 'white', fontsize = '14', fixedsize = 'false', style = 'bold,filled'] '38' [label = 'END', shape = 'box', color = 'blue', fillcolor = 'blue', fontcolor = 'white', fontsize = '14', fixedsize = 'false', style = 'bold,filled'] '1'->'38' [color = 'blue', label = '95', penwidth = '9.5', fontsize = '14'] '2'->'6' [color = 'blue', label = '33', penwidth = '3.3', fontsize = '14'] '3'->'9' [color = 'blue', label = '52', penwidth = '5.2', fontsize = '14'] '4'->'2' [color = 'blue', label = '21', penwidth = '2.1', fontsize = '14'] '4'->'22' [color = 'blue', label = '36', penwidth = '3.6', fontsize = '14'] '4'->'34' [color = 'blue', label = '21', penwidth = '2.1', fontsize = '14'] '5'->'15' [color = 'blue', label = '40', penwidth = '4', fontsize = '14'] '6'->'33' [color = 'blue', label = '25', penwidth = '2.5', fontsize = '14'] '7'->'2' [color = 'blue', label = '28', penwidth = '2.8', fontsize = '14'] '8'->'17' [color = 'blue', label = '25', penwidth = '2.5', fontsize = '14'] '8'->'24' [color = 'blue', label = '33', penwidth = '3.3', fontsize = '14'] '9'->'33' [color = 'blue', label = '32', penwidth = '3.2', fontsize = '14'] '10'->'32' [color = 'blue', label = '24', penwidth = '2.4', fontsize = '14'] '11'->'1' [color = 'blue', label = '94', penwidth = '9.4', fontsize = '14'] '12'->'1' [color = 'blue', label = '75', penwidth = '7.5', fontsize = '14'] '13'->'15' [color = 'blue', label = '43', penwidth = '4.3', fontsize = '14'] '14'->'33' [color = 'blue', label = '30', penwidth = '3', fontsize = '14'] '15'->'1' [color = 'blue', label = '45', penwidth = '4.5', fontsize = '14'] '16'->'7' [color = 'blue', label = '26', penwidth = '2.6', fontsize = '14'] '17'->'27' [color = 'blue', label = '46', penwidth = '4.6', fontsize = '14'] '18'->'25' [color = 'blue', label = '71', penwidth = '7.1', fontsize = '14'] '19'->'30' [color = 'blue', label = '58', penwidth = '5.8', fontsize = '14'] '20'->'17' [color = 'blue', label = '29', penwidth = '2.9', fontsize = '14'] '21'->'10' [color = 'blue', label = '27', penwidth = '2.7', fontsize = '14'] '21'->'27' [color = 'blue', label = '23', penwidth = '2.3', fontsize = '14'] '23'->'30' [color = 'blue', label = '39', penwidth = '3.9', fontsize = '14'] '24'->'26' [color = 'blue', label = '26', penwidth = '2.6', fontsize = '14'] '25'->'3' [color = 'blue', label = '22', penwidth = '2.2', fontsize = '14'] '26'->'21' [color = 'blue', label = '100', penwidth = '10', fontsize = '14'] '27'->'16' [color = 'blue', label = '85', penwidth = '8.5', fontsize = '14'] '30'->'2' [color = 'blue', label = '30', penwidth = '3', fontsize = '14'] '30'->'5' [color = 'blue', label = '32', penwidth = '3.2', fontsize = '14'] '37'->'10' [color = 'blue', label = '24', penwidth = '2.4', fontsize = '14'] '37'->'18' [color = 'blue', label = '60', penwidth = '6', fontsize = '14'] '32'->'16' [color = 'blue', label = '22', penwidth = '2.2', fontsize = '14'] '33'->'29' [color = 'blue', label = '61', penwidth = '6.1', fontsize = '14'] '34'->'35' [color = 'blue', label = '48', penwidth = '4.8', fontsize = '14'] '35'->'19' [color = 'blue', label = '100', penwidth = '10', fontsize = '14'] '36'->'4' [color = 'blue', label = '30', penwidth = '3', fontsize = '14'] {rank = min; 37;} {rank = same; 17; 24; 18; 28; 31;} {rank = same; 25; 26; 36;} {rank = same; 4; 21; 3;} {rank = same; 22; 34; 27; 10; 9;} {rank = same; 35; 32;} {rank = max; 38;} } " )
